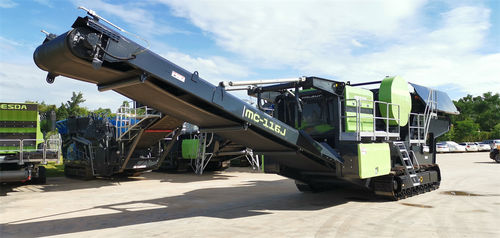

Jaw crusher MC-116J

mobilecrawler

Simple mechanical structure. Stablerio Can operate stably for a long time Sturdy and durable Capable of handling various harsh working conditions Easy to maintain Easy maintenance and cheap TECHNICAL PARAMETERS Feeder - Feeding capacity（t/h) - 450 - Input size max（mm) - 700 - Feed height (mm) - 4100 - Hopper volume (m³) - 5 - Vibrating feeder - Length × width（mm) - 4000×1040 - Power （KW） - 3.7 × 2 - Jaw crusher - Jaw crusher - J-116 - Input size max（mm） - 700 - Weight（t） - 20 - Power（KW） - 110-6 - Main conveyor - Discharge height(mm) - 3200 - Length × width（mm） - 13000×B1200 - Power（KW） - 15 - Extend conveyor - Discharge Height (mm) - 2100 - Length × Width（mm） - 3600×B500 - Power（KW） - 3 - Iron remover (options) - Length × Width（mm） - 1670 × B800 - Power（KW） - 3 - Transportation dimensions(L × W × H/m) - 16.24 × 3.35 × 3.78 - Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
