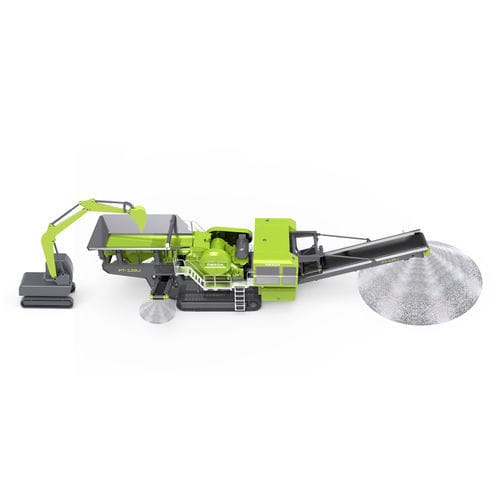

Jaw crusher PT-120J

mobilefor all materialscrawler

Simple mechanical structure. Accessories complete Generator included Stablerio More in line with working condition Stablerio Can operate stably for a long time TECHNICAL PARAMETERS PROJECT - NAME - PT-120J - COMMENT Feeder - Feeding capacity（t/h) - 700 - Input size max（mm) - 800 - Feed height (mm) - 4450 - Hopper volume (m³) - 6 - Vibrating feeder - Length × width（mm) - 4140 × 1260 - Power （KW） - 5.5 × 2 - Jaw crusher - Jaw crusher - J-120 - Input size Max（mm） - 800 - Weight（t） - 26 - Power（KW） - 160-6 - Main conveyor - Discharge height(mm) - 4800 - Length × width（mm） - 13000 × 1400 - Power（KW） - 11 × 2 - Extend conveyor - Discharge Height (mm) - 3100 - Length × Width（mm） - 6400 × 650 - Power（KW） - 4 - Iron remover (optional) - Length × Width （mm） - 1670 × 800 - Power（KW） - 3 - Hydraulic Breaker (optional) - Breaker Model - 75 Straight hammer - Generator power (KW) - 360 - Hydraulic station motor power - 132 - Whole power for crushing （KW） - 193(200) - Transportation dimensions（L × W × H，m） - 20 × 3.5 × 3.95 - Working dimensions（L × W × H，m） - 20.5 × 8.4 × 5 - Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
