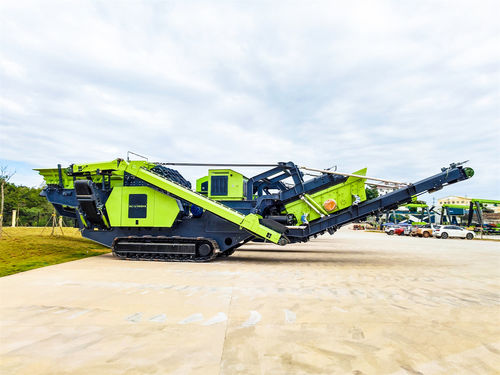

Hammer crusher MC-1400HS

mobilecrawler

Simple mechanical structure. Powerful function High crushing ratio(usually 10-25,the highest can upto 50) Amazing efficiency One-time forming of aggregate high productivity Low energy consumption Low energy consumption TECHNICAL PARAMETERS Feeder - Max feeding size(mm) - 700 - Feeding height (mm) - 3650 - Capacity (m³) - 6 - Vibrating feeder - Length × width（mm) - 3600 × 1320 - Power（KW） - 3.7KW × 2 - Feed capacity(t/h) - 500 - Hammer crusher - Hammer crusher - 1400H - Max feed size(mm) - 700 - weight(t) - 14 - Crusher power (kw) - 185 - Main Conveyor - Height (mm) - 3000 - Length × width (mm) - 9300 × B1000 - Conveyor power - 11 - Post-screen - Length × width (mm) - 2500 × 1500 - Power (kw) - 3.0KW × 2 - Transit conveyor - Length × width (mm) - 2100 × B650 - Power (kw) - 3 - Recirculating conveyor - Length × width (mm) - 8600 × B500 - Power（kw） - 4 - Fines conveyor - Length × width (mm) - 6000 × B1000 - Power（kw） - 7.5 - Tail conveyor - Length × width (mm) - 3150 × B500 - Power（kw） - 3 - Total Working Power(kw) - 227 - Transport dimensions (mm) - 12000 × 3500 × 3650 - Working size - 16000 × 4100 × 4400 - Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
