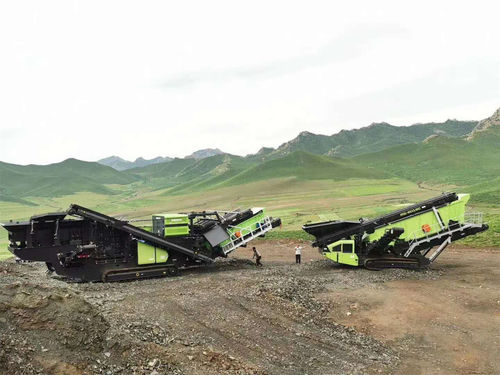

Impact crusher MC-250IS

mobileprimarycrawler

Simple mechanical structure. Powerful function Has primary and intermediate crushing functions Convenient to repair Wear-resistant parts are suitable for screw fixing High production capacity Good shape of crushed stone particles and high output TECHNICAL PARAMETERS PROJECT - NAME - MC-250IS - COMMENT Hopper - Feed capacity(t/h) - 500 - Max feed Size(mm) - 700 - Feed height(mm) - 3850 - Capacity(m3) - 6 - Vibrating feeder - Length × width (mm) - 3900 × 1250 - Power (kw) - 3.7kw × 2 - Crusher - Impact crusher - 250I - Rotor size(mm) - Φ1240 × 1300 - Max feed size(mm) - 700 - weight(t) - 18 - Power(kw) - 220 - Main conveyor - Discharge height(mm) - 3250 - Length × width (mm) - 11000 × B1200 - Power（KW） - 15 - Post-screen - Length x Width（mm） - 3500 × 1500 - Power (KW) - 3.7kw × 2 - Transit Conveyor - Length x Width（mm） - 2000 × B500 - Power（KW） - 3 - Recirculating Conveyor - Length x Width（mm） - 8900 × B650 - Power (kw) - 5.5 - Fines conveyor - Length x Width（mm） - 6650 × B1000 - Power (kw) - 7.5 - Transport Dimensions (m) - 17 × 3.5 × 3.8 - Total Working Power(kw) - 268 - Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
