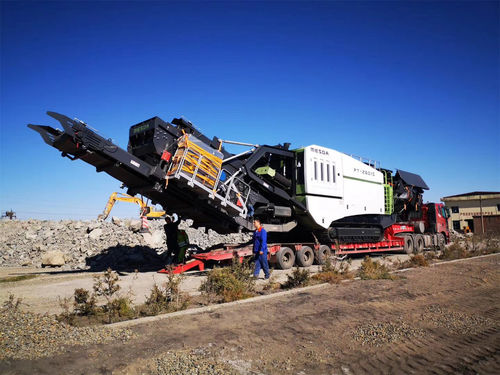

Impact crusher PT-260IS

mobilefinecrawler

Simple mechanical structure. Accessories complete Generator included Low energy consumption Strong crushing capacity and low energy consumption Sturdy and durable Wear-resistant parts are suitable for screw fixing TECHNICAL PARAMETERS PROJECT - NAME - PT-260IS - PT-260IS(B) Hopper - Max Feed size (mm) - 800 - 800 Feed height(mm) - 4300 - 4300 capacity(m3) - 6 - 6 Vibrating Feeder - Length x width（mm） - 2700 x 1200 - 2700 x 1200 Power （KW） - 2.9kw x 2 - 2.9kw x 2 Pre-screen - Length x width (mm) - 2050 x 1250 - 2050 x 1250 Power (kw) - 2.6 x 2 - 2.6 x 2 Mud Conveyor - Length x width (mm) - 6000 x B500 - 6000 x B500 Power (kw) - 4 - 4 Crusher - Impact crusher - PT-260IS - PT-260IS(B) Max feed size （mm） - 700 - 700 Rotor size（mm） - Φ1250×1270 - Φ1250×1270 Rotor speed（rpm） - 700 - 700 Crusher Weight（t） - 18 - 18 Power（KW） - 250 - 250 Main Conveyor - Height(mm) - 3600 - 3600 Length x Width（mm） - 12500 x B1200 - 12500 x B1200 Power（KW） - 15 - 15 Recirculating-screen - Length x Width（mm） - 4000 x 1500 - 4000 x 1500 Power (KW) - 5.1kw x 2 - 5.1kw x 2 Transit Conveyor A - Length x Width（mm） - 2100 x B500 - 2100 x B500 Power（KW） - 3 - 3 Transit Conveyor B - Length x Width（mm） - / - 2100 x B500 Power (kw) - / - 3 Recirculating-Conveyor - Length x Width（mm） - 9800 x B500 - 9800 x B500 Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
