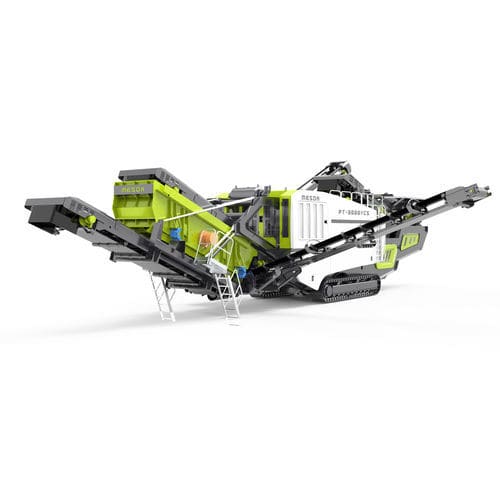

Cone crusher PT-3000YCS

mobilecrawler

Simple mechanical structure. Accessories complete Generator included Easy to maintain Low consumption of warming parts and low operating cost High precision The shape is cube, the particle shape is good TECHNICAL PARAMETERS Pre-screening machine - Feed capacity(t/h) - 400 - Hopper volume (m³) - 1.5 - Power (kw) - 2.4 × 2 - Feeding height(mm) - 3600 - Pre-screening conveyor - Length × width（mm) - 4700 × B650 - Power(kw) - 3 - Feed conveyor - Length x width(mm) - 5850 × B1000 - Power (kw) - 11 - Cone Crusher - Cone crusher - 3000（multi） - Max feed size (mm) - 210 - Output size (mm) - 16-45 - Weight (t) - 16 - Oil station power (kw) - 13 - Power（KW） - 250 - Main conveyor - Length × width (mm) - 11200 × B1000 - Discharge height(mm) - 3100 - Power（KW） - 11 - Final conveyor - Length × width (mm) - 6000 × B1000 - Discharge height(mm) - 2800 - Power（KW） - 7.5 - Post screen - First layer length x width - 4000 × 1500 - Second layer length x width - / - Power（KW） - 3.7 × 2 - Transition conveyor - Length × width (mm) - 2500 × B650 - Power (kw) - 3 - Side conveyor - Length × width (mm) - / - Discharge height(mm) - / - Power (kw) - / - Recirculating conveyor - Length x weight (mm) - 10500 × B650 - Power (kw) - 5.5 - Whole machine - Tracked chassis model - M60 - Motor power of hydraulic station (kw) - 75 - Generator power (kw) - 500 - Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size.
