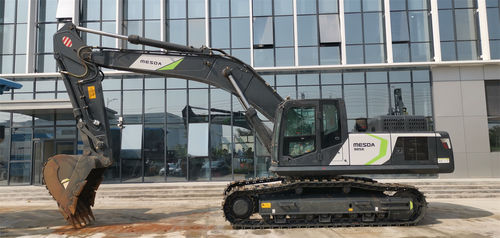

Medium excavator ME-385.9

largecrawlerdiesel

Simple mechanical structure. Stable and secure with excellent function Heavy duty undercarriage components, reinforced idler frame and optional full track guard guarantee the integrity of our undercarriage. Easy operation and humanized design Visibility is key to protecting your operator and workers on site. The large glass surface area, spacious cab, combined with the rear-view camera, provides an extraordinary view of the ME-385.9’s surroundings. Good usability and good design Inspection parts, filters and water separator are conveniently located. TECHNICAL PARAMETERS Engine model - Isuzu 6 W G 1 - Slew speed (r/min) - 8.6 - ISO Bucket excavating force (KN) ISO - 276 - Bucket rod length(m) - 2550 - whole size - Overall length (mm) - 12180 - Total height(Cab roof)(mm) - 3280 - Counterweight ground clearance (mm) - 1300 - Min. ground clearance (mm) - 720 - Turning radius of vehicle tail(mm) - 3845 - Ground contact length of track(mm) - 4360 - Track shoe length (mm) - 5390 - Track gauge(mm) - 2740 - Track shoe width (mm) - 3340 - Track shoe width(mm) - 600 - Rotary table width(mm) - 3045 - Scope of work - Maximum excavating height(mm) - 10000 - Maximum unloading height(mm) - 6660 - Maximum vertical wall excavating depth(mm) - 5620 - Maximum excavating distance - 10580 - Maximum excavating distance at ground level(mm) - 10360 - Minimum turning radius(mm) - 4825 - Maximum height at minimum turning radius(mm) - 9250 - Distance between the center of gyration and the rear end side(mm) - 3845 - Counterweight height(mm) - 2360 - Ground contact length(during transportation)(mm) - 6520
