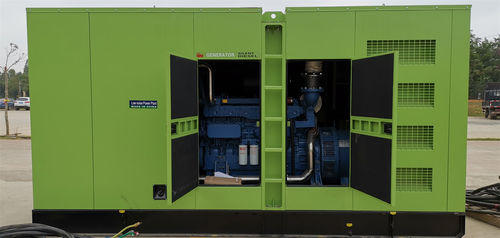

Discharge generator EM625

AVRvoltagecompact

Simple mechanical structure. Humanized control panel Multi-functional high-tech control panel. Low energy consumption and low noise Compact structure, convenient operation, stable operation, low fuel consumption, low emission and low noise. Up to various standards on performance The performance indicators meet the requirements of the standard GB/T2820, and are applicable to the regular power supply or backup power supply for mining equipment, residential buildings, medical systems, industrial and mining enterprises, government, schools, post and telecommunications. TECHNICAL PARAMETERS Rated speed (r/min) - 1500 - 100% Sudden power reduction - ≤+12 Rated frequency (Hz) - 50 - Sudden power addition - ≤-10 Rated power factor - 0.8(Lag) - Frequency recovery time (s) - ≤5 Generator Oil consumption L/h - 105 - Phase and connection - Three-phase four-wire system Steady state voltage deviation (%) - ≤±2.5 - Starting method - Electric start 100% Sudden power reduction - ≤±2.5 - Pressure regulation method - Automatic Sudden power addition - ≤-20 - Cooling method - Brushless self-excitation (AVR) Voltage recovery time (S) - ≤1 - Diesel engine model - Yuchai YC6TD840-D31 Voltage imbalance (%) - ≤1 - Generator manufacturers - Deco TCU368D-500KW Voltage modulation (%) - 0.3 - Weight kg - 3800 kg Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
