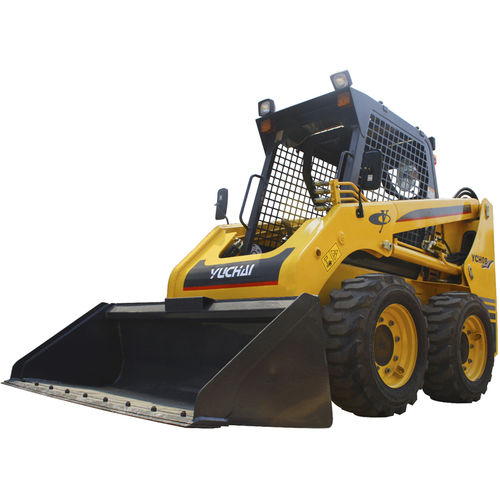

Wheeled loader YCH08

for construction

YCH08 Loader Machine weight：2850kg Rated load: 800kg Bucket capacity：0.43m³ Tipping Load：1600kg Boom lift：5 s Boom lift/Boom lower/Boom tilt forward：10.5 s Overall operating height - 3886mm Height to bucket hinge pin - 3016mm Height to top of cab - 2010mm Height to bottom of level bucket - 2836mm Overall length without attachment - 2564mm Overall length with standard bucket - 3310mm Dumping angle at maximum height - 42° Dumping height - 2306mm Dumping reach - 495mm Rollback of bucket on ground - 25° Rollback of bucket at full height - 94° Wheelbase - 985mm Ground clearance - 205mm Angle of departure - 25° Clearance circle front without bucket - 1135mm Clearance circle front - 1983mm Clearance circle front - 1556mm Rear axle to bumper - 960mm Tread width, centerline to centerline - 1284mm Bucket width - 1680mm Efficiency Comes from Reliability, Applicability Creates Value and Technology Leads the Future TrendYuchai has entered into all fields of construction machinery industry. The product system led by earth moving machines and pile-driving machines covers 9 types of construction machinery products such as hydraulic excavator, rotary drilling rig, diaphragm wall grab, self-propelled aerial work platform, high-altitude hydraulic demolishing machine, material grab, cutting machine, skid steer loader and mining vehicles.
