Core drilling drilling rig YCR-180pilingcrawlerrotary
Add to favorites
Compare this product
Characteristics
- Drilling type
- core drilling
- Applications
- piling
- Mobility
- crawler
- Drilling unit
- rotary
- Sector
- construction
- Drilling diameter
1,800 mm
(71 in)- Drilling depth
55 m, 60 m
(180'05" , 196'10" )
Description

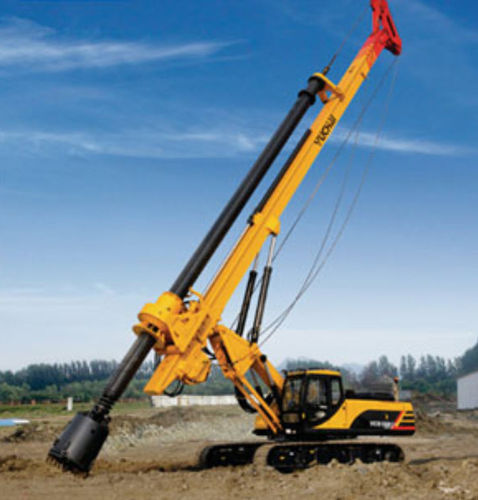

YUCHAI YCR-180 Rotary drilling rig
Operating Weight: 62t
Engine:Cummins 6C8.3
Rated power：194/1800kW/rpm
Maximum output Torque of Power head ：180kN·m
Principle Dimension
Height of Working State - - 19005mm
Width of Working State - - 4100mm
Length fo Travel Position - - 13695mm
Height of Travel Position - - 3460mm
Width of Travel Position - - 3200mm
Length of Crawler - - 5538mm
Technical Spécification - -
- Outer Width of Crawler - 4100mm
Châssis - Width of Crawler Plate - 800mm
- Hauling Force - 390kN
- Maximum Torque - 180kN-m
Power Head - Speed - 7-25r/min
- Maximum Pressure - 120kN
- Maximum Pulling Force - 180kN
- Pressurized Cylinder Stroke - 3600mm
Hoist - Main Hoist 1 st Layer of Lifting Force - 180kN
- Maximum Lifting Speed - 46m/min
- Diameter of Wirerope - 026mm
- Auxiliary Hoist 1 st Layer of Lifting Force - 50kN
- Maximum Lifting Speed - 70m/min
- Diameter of Wirerope - 016mm
