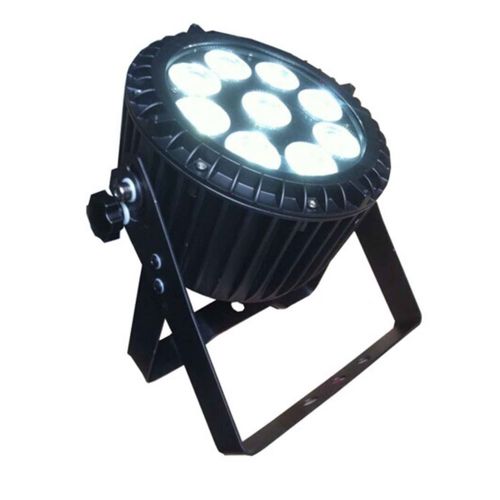

Light fixture ALS-LP09 series

LEDIP65aluminum

The NEW LED PAR produces no multi-coloured shadowing thanks to its 9 x 15W 6-in-1 LED Since each individual LED incorporates a RGBWAUV behind a single lens, shadows and unevenness within the field are things of the past. Housed inside the rugged cast aluminium chassis is an advanced LED control panel giving the ability to run built-in program and perform full RGBWA+UV colour mixing with or without DMX control. ELECTRICAL SPECIFICATION Voltage:90-250V 50-60Hz Power:140W LAMP SOURCE LED:9*15W Color:Red9-Green9-Blue9-White9-Amber9-Purple9 DMX CHANNELS 6/10CH Operation Mode: Sound Activated/Auto/DMX512/Master-Slave LED Life The LED light sources used have an exceptionally long life: predicted 50,000 hours under normal operating conditions as mentioned by the LED manufacturer Lens Narrow filter : 8°，15°, Wide filter ： 45° A wide choice of optional lens is available on request HOUSING Die cast aluminium body Scratch resistant polyester black finish protected against UV deterioration and general corrosion Easy mounting system for truss, ceiling and floor with full orientation capability Fixing yoke included EXTERNAL OPERATING LIMITS -20°C to 40°C (-4°F to 104°F) Size & Weight Size:0.24*0.22*0.24m/1pcs GW:4.5kg
