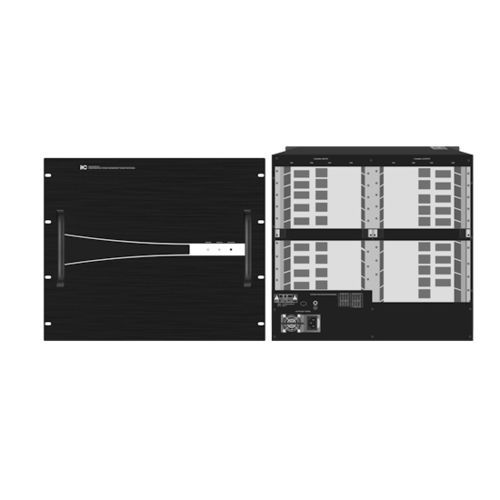

Video switch matrix TS-9436UHM

analogdigitalflexible

Hybrid Seamless Matrix Switcher is a flexible matrix signal switcher. With high-performance hardware design, with perfect support for all types of high-definition digital / analog signal switching processing. It provides a one-stop solution for various video and control signal distribution switching processes in various industries and can be widely used in radio and television engineering, multimedia conference hall, LED video wall, television teaching, command and control center and other places. Feature： * Modular matrix controller with configurable input/output signal boards, support 36×136 signal switching. * Support HDMI, DVI, VGA, SDI, HD BaseT, optical fiber or any input / output signal board, improve system flexibility. DVI input board is compatible with CVBS, YUV, VGA signal, VGA input / output board are compatible with CVBS, YUV, VGA. * Customized configuration of various types of the same or different I/O boards to form a matrix of single interface type or multi-interface type, such as HDMI matrix, DVI matrix, VGA matrix, YUV matrix, Video matrix, etc. * Support maximum resolution up to 3840x2160 30Hz. * Support seamless switching function, no black screen signal during the switching process. * Flexible control mode, with 1 channel RS-232, 1 channel RS-485, 1 channel TCP/IP port (PC software), support external panel control interface. * Support audio and video signal synchronization switching, switching response speed is fast. * Support analog audio and HDMI embedded audio selection input. * Support analog audio and HDMI embedded audio output at the same time.
