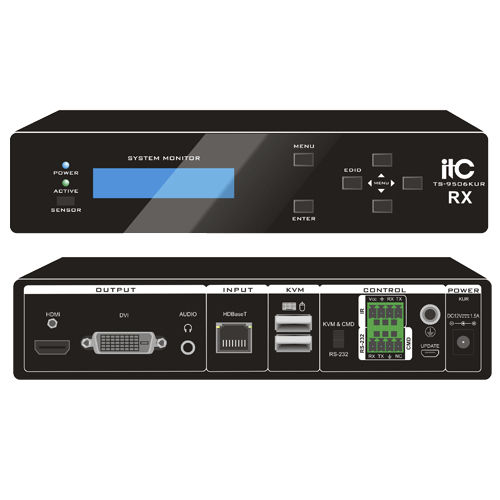

Video receiver TS-9506KUR

digitalaudioRS232

This is KVM receiver for UHD video remote transmission, which can be used with the twisted pair transmitter or HD BaseT transmitter board of video matrix. The black metal housing makes it look neat and elegant. Feature： * Adopt advanced HDBaseT transmission technology, 10.2Gbps transmission rate, no signal compression, no signal loss and delay. * Support HD BaseT input, HDMI and DVI digital video output interface. * Support HDMI 1.4 standard (compatible with DVI 1.0) and HDCP 1.4 standard. * Support maximum resolution 4Kx2K @30Hz, and the output resolution and input resolution are the same. * Support long distance transmission: the network cable for 1080P image transmission can reach 100m, and that for 4K image transmission can reach 70m. * Strong port driving capability. HDMI/DVI cable for 1920*1080P 60Hz image transmission can reach 15 meters and 10 meters for 3840*2160 30Hz image transmission. * Support KVM function, real-time pass-through of mouse and keyboard data, no delay in operation, and support matrix video switching through keyboard shortcut keys. * Support the real-time extraction of audio data from the video, synchronous output. * Support two-way pass-through of RS232 serial data, and the baud rate can be up to 256000bps. * Support two-way pass-through of infrared signals and support 38KHz carrier modulation. * Support EDID learning and memory function, and built-in multiple EDID for user selection to ensure compatibility with different displays. * Support RS232 serial command control. All functions can be set through serial port commands. * Support remote POC power supply through twisted pair, convenient for installation.
