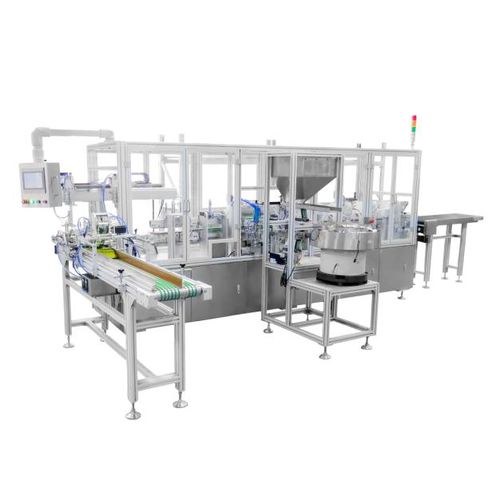

Single-channel Linear Mode Corner-spout Sealing Machine GF-1600X
Product Introduction
The fully automatic Linear Mode Corner-spout Sealing Machine is a machine specially used for automatic casing and heat sealing of spouts and pouches. It is suitable for spouts of various diameters, lengths and models. It is an ideal choice for bevel pouches with nozzles for laundry detergents and oblique nozzles for beverages and juices. The preferred automation equipment for packaging pouches such as machine oil and edible oil slant-mouth pouches, slant-mouth outdoor folding water pouches, etc. It can be customized and connected to the filling production line.
Item - Technical Parameters
Instrument size - 5900 mm x 2650 mm x 1900 mm (length*width*height)
Pouches type - Stand-up pouches, 3-side seal pouches, gusset pouches, shaped pouches
Material type - Pouch:inner layer PE, inner layer PP
- Spout:PE, PP
Product specification - Pouch length:150~350 mm(length),120~250 mm(width), spout
sealing length: 60~120 mm
- Spout size:8.5 mm (regular), 10 mm, 14 mm,16 mm, etc
Working speed - 40-45 pcs/min
Location precision - ≤0.5 mm
