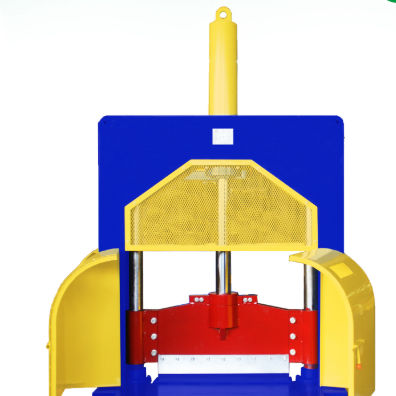

Knife cutting machine 40T series

for rubberbladeslab

Hydraulic Rubber Cutter It is mainly composed of cutting knife, rack, working oil cylinder, base, auxiliary worktable, hydraulic system and electrical system. The base of rubber cutter is equipped with cushion plate to protect the cutter blade. It has the advantages of small footprint, easy to install and wide used. This machine is suitable for cutting natural rubber and other plastic materials. With stronger cutter force and high efficiency, it is necessary equipment for rubber factory. We have 900mm width, 1000mm width, 1200mm width and 1500mm width with pressure 40T, 60T, 100T, 250T and 300T.in addition, CUSTOM-MADE is acceptable for us. Applications: This machine is applicable for cutting and recycling the large plastic products, huge pipes, slab, rubber, Tire, ABS hard rubber, cord rubber, cord fabric and so on. especially suitable for installing beside the internal mixer and cutting small lump plastic. As for double cylinder rubber cutter, it adopts double cylinder guiding mode, which has high precision guidance and accurate cutting. It is not only suitable for natural rubber, recycling rubber, PVC and PVG, but also suitable for cord rubber and cord fabric and so on. Operation Procedure: When cutting, the rubber is placed under the cutter, then pressing start button, the cutter is driven by the piston rod, and the rubber is cut down along the slide way on the rack. The upper and lower two limit switches are installed on the rack to control the directional valve to change the movement direction of the cutter and protect the cover of piston rod.
