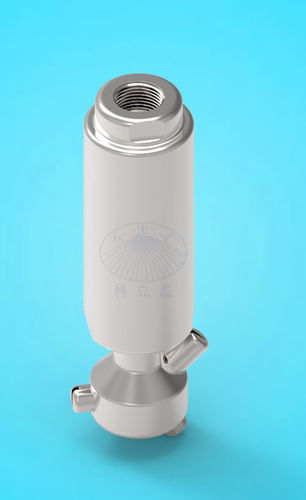

ModelKZH30 rotary spray head
Material316L ss
BearingSlide bearing
Operating pressure3-7 bar
Max. pressure20 bar
Max. tank diameter3m
Diameter60mm
Filtrationline strainer with a mesh size of 80 or 100 mesh
Applicationhign efficient cleaning of tanks, equipment, etc
InstallationOperation in every direction is possible
Advantages:
Controlled rotation
Pressure range up to 20 bar
Driven and lubricated by the cleaning fluid
Reliable slide bearing
Low-wear design
High impact flat jet, 360 degree spray, thoroughly clean
Internal gear reduction make it work more stable
The liquid flow powers the head by an internal gear. Either a gear reduction or a hydraulic brake is used to control the rotation. Hence the produced droplets are bigger and hit the tank wall with higher velocity. This rotary spray head keeps the speed of the head within its optimal range across a wider span of pressures, and the nozzles develops more powerful spray.
Applications:
Efficient cleaning and rinsing of tanks or containers, for example
Chemical industry
Food industry
Beverage industry
Pharmaceutical industry
