Spray nozzle DG5
cleaningfor liquidsstainless steel

spray nozzle
spray nozzle
spray nozzle
spray nozzle
Add to favorites
Compare this product


Characteristics

Function
spray, cleaning
Fluid
for liquids
Material
stainless steel
Applications
for the food industry, for pharmaceutical applications, for tanks, chemical
Other characteristics
rotary, high-impact

Description

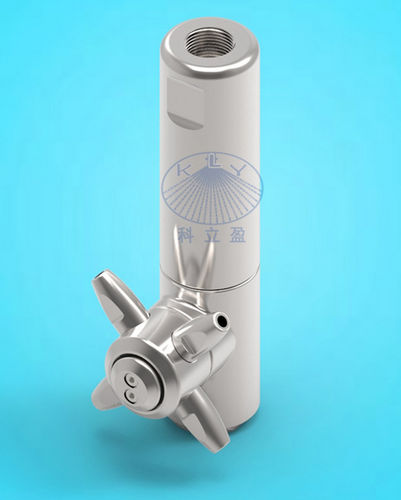

Model:DG5 high efficient 3D rotary jet head Material:316L ss Max. tank diameter: 5m Operating pressure:5-70Bar Tempreture range:95° Installation:Vertically facing downward Application: Cleaning and rinsing of small to medium size tanks i.e. chemical industry,drink and food industry. DG5 tank cleaner for the largest tanks and most difficult applications, this gear driven cleaning nozzle is our most powerful. Very high cleaning performance already at low pressure Driven and lubricated by the cleaning fluid Systematically cleans the entire tank interior(360°) Robust, low-maintenance stainless steel construction 100% thoroughly clean,every time Optimized structural design makes water jet with greater impact Excellent seal design, only 3% leakage of water Designed with a separate gearbox,uneasy to get clogging Programmed rotation machines: The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes. In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern. This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.
