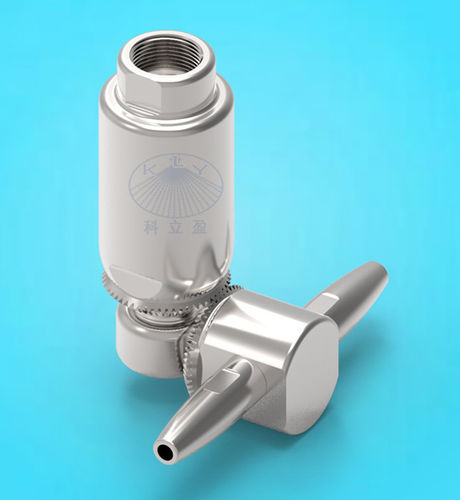

Cleaning nozzle MG10

for liquidsstainless steelfor the food industry

Model:MG10 tank cleaning nozzle Material:316L ss Max. tank diameter: 10m Operating pressure: 4-20Bar Tempreture range:95° Installation: Vertically facing downward Application: Cleaning and rinsing of large tanks i.e. chemical industry,drink and food industry. The MG10 rotating tank cleaning machine provides complete tank cleaning that is both thorough and cost-effective. It is fluid driven with external gears and was specifically designed to fit a 3″ (76.2 mm) opening, for cleaning of totes, IBCs and other limited access vessels. This model also incorporates a set of bevel gears which provide a complete 360-degree indexing pattern every 45 revolutions and has an effective cleaning diameter of 30 ft (9.2 m). It operates up to 300 psi (20.7 bar) and offers simplicity of design and ease of field maintenance. Very high cleaning performance already at low pressure Driven and lubricated by the cleaning fluid Systematically cleans the entire tank interior(360°) Robust, low-maintenance stainless steel construction Application: MG10 rotating tank cleaning machine are suitable for medium to large tanks, such as Dairy , Food, Pharmaceutical, Beer, Chemical, industrial fermentation industries and many others.
