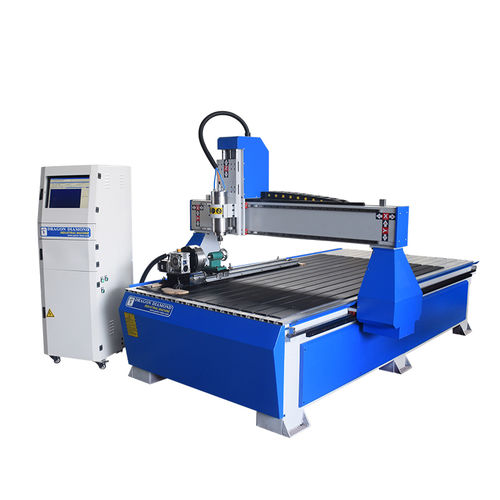

CNC router Lz-1325R

3-axismulti-headfor wood

Woodworking Engraving CNC Router Machine 1325 With Rotary Axis 1300*2500mm CNC Router With Reduction Gear Type Rotary Axis. PRODUCT FEATURES 1.Stronger Structure Welded steel T type structures as a whole,8mm thickness,six-legged heavy-duty boday ,large bearing capacity with vibration Temper aging treatment ensures no deformation for long time,avoid broken knife,more stable,durable. 2.Aluminum +PVC Slot Table 3mm Thickness aluminum T-Slot working table, more stable and longer life time than normal T-Slot table. 3.Water Cooling Spindle Large power 3kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter. 4.Square Guide Rail Imported Hiwin,Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running.Adopt imported precision ball screws , tools feeded with more accuracy. 5.Transmission Type Gear pinion and Rack gear transmission for X and Y axis, higer running speed and efficiency, saving cost.Z axis with precision ball screw, high precision and more durable. 6.Motor And Driver China famous 86BYGH450B Stepper Motor and Leadshine stepper motor and driver for XYZ Axis, high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 15000mm per min. 7.Independent Rotary Axis Extended gantry & independent removable rotary axis holder ,with diameter 200mm 4 chucks, working length 1000mm totary axis,cylinder processing is in a special zone,each time,no need put the heavy rotary axis on the working table,saving labor and improving working effeciency.
