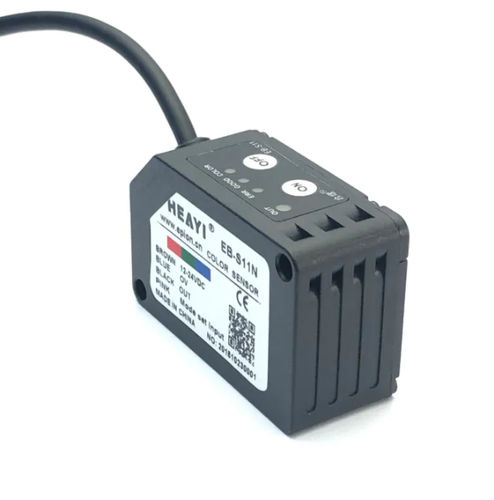

Beam color sensor EB-S11P

LED

factory directly sell diffuse type EB-S11P RGB color photo eye for color detection Working mode color mode & mark mode Type Diffuse type/ Through beam Brand HEYI Detection distance 18 to 28mm Power voltage 24V DC + 10% pulsation less than P-P10% Current consumpiton Power less than 850mW (power voltage is 24V, the current consumption is below 35mA). Short circuit protection Equipped (automatic recovery) Reaction time Below 200μs Ambient temperature -10 to +55℃(no exposed,no freezing) Ambient humidity 35 to 85%RH, No condensation Optical element Red / Green / Blue composite LED (Wave peak/wavelength: 640nm/525nm/470nm) Material Cage: PBT operation panel: PC operation button: silica gel lens: PC Cable 0.2mm² 4 core rubber cable standard 2m Distinction (color matching) Brown: +V Black: output Pink: mode conversion input blue: 0V Weight about 104g Light source RGB LED light source Usage color detection sensor Theory optical sensor Output switching output Sensing Range 18-28mm Sensing Object color of object Application printing industry, packing industry
