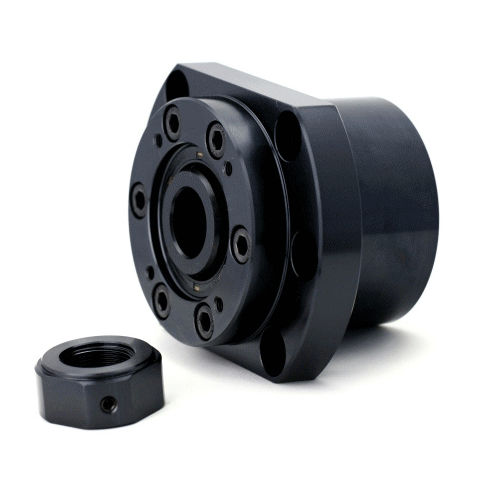

Fixed bearing unit LWBK series

axialpillowwith ball bearing

LWBK Heavy-duty ball screw support unit Excellent axial high loading capabilities and can be applied in a wide range of industrial machines. Utilizes 60-degree angular contact bearings, it handles higher axial load and high stiffness. Rotation precision grade is P4 to meet positioning accuracy. The heavy load bearing supports have three configuration types: DF, DFD, and DFF. DF is for general use and can bear both normal and opposite axial forces. DFD uses one bearing on one side and two on the opposite side, to enhance the loading capacity. DFF uses two bearings in both directions to increase each sides loading capacity. Customers can choose from different configuration types based on the axial loading capabilities needed for the application. Assembled with high accuracy and stiff angular bearings Anti-rust surface Compact size and easy installation in tight or narrow spaces Instant installation without additional processes
