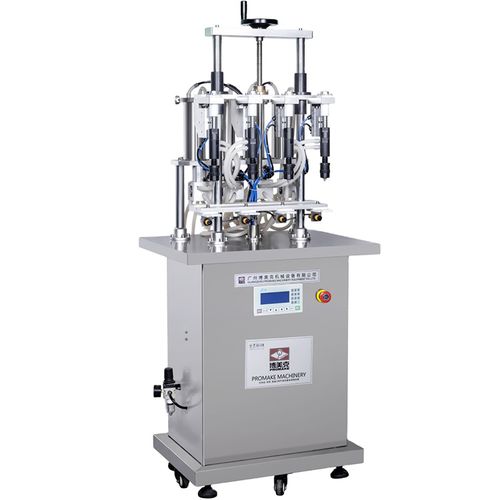

Semi-automatic filling machine FM

moldbottlefor cosmetic products

Connect the air source. Place the bottle to be filled into the mold directly below the filling head and seal it with the fillinghead. At this time, the CAM opens the mechanical valve, and makes the vacuum bottle valve close and the suction valve open, sothat the vacuum generator produces vacuum. Forming a vacuum environment system. Vacuum suction fills the bottle with material. When the material inside the bottle rises to the height of the outer casing of the filling head. Because the vacuum suctionthrough the outer sleeve, the bottle material sucked into the vacuum bottle so that the bottle material always maintain a certainheight until the filling bottle is removed. The mechanical valve closes and the vacuum generator stops producing vacuum. Suctiontube closed. The vacuum bottle valve is opened and the material in the vacuum bottle flows into the barrel due to the action ofgravity to complete a filling cycle. Filling quantity is filled by time. Equipment detail display There are many types of filling nozzles, which can fill liquid pastes. The connecting part of the cylinder and the pipeline is connected by a band. The connection is easy to disassemble and does not require any special tools, so it is easy to clean the leak-proof filling system. Some models have automatic heating and stirring functions, which can be customized according to customer needs Pneumatic valve Parameter configuration Note: The data in this table is inconsistent due to technical improvement and customization; this table is for reference only, and everything is subject to the actual product. You can consult us for more information
