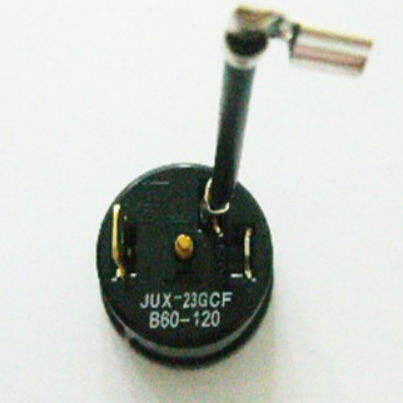

Thermal overload protector B series

The product is used as the accessory of the compressors for refrigerator, freezer or air-conditioner. It consists of dishes thermal bimetal disc connected in series with heating element. When the compressor is in locked rotor or running overload occur, the bimetal disc will snap trip, cut off the current to realize its protection function to compressor. The product has the feature of high sensibility, reliability, stability, small volume and light weight. Code System e.g: B58-105A stands for the rated current is 5.8A, opening temperature is 105℃. And it is a kind of thermal protector with current-temperature auto-reset type, and is designed for the first time. Ambient Conditions： Safety Certificates： CQC、VDE。 Weight：≤15g Ambient Temperature：-10℃～+43℃ Relative Humidity：≤90%（25℃） Remark ：Terminal type 4.8×0.8mm or 6.3×0.8mm faston（produce products according to customers’requirements）
