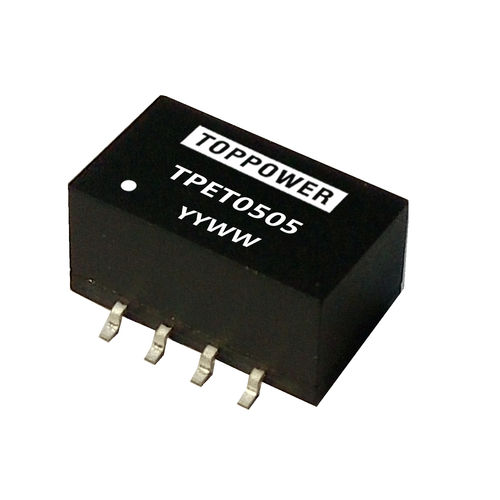

SMD DC/DC converter TPET series

compactnon-stabilized

Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required. these converters are qualified for the higher temperatures requested by lead-free reflow solder processes, especially for automated SMD production lines. RoHS compliant、CE certificationEfficiency up to 78%Single isolated output 3KVDC isolationCustom solutions availablePower density 1.8W/cm3 UL 94V-0 package materialFootprint over pins 1.37cm2Operating temperature: -40℃to 105℃ Input voltage: 3.3V, 5V,12V,15VOutput voltage:3.3V, 5V, 9V, 12V,15V Part Number TPET0303 TPET0305 TPET0309 TPET0312 TPET0315 TPET0503 TPET0505 TPET0509 TPET0512 TPET0515 TPET1203 TPET1205 TPET1209 TPET1212 TPET1215 TPET1505 TPET1515 TPET2403 Add suffix “P” for continuous short circuit protection, for example TPET0505P. Add suffix “X” has not 5,10,12 pin, for example TPET0505X.
