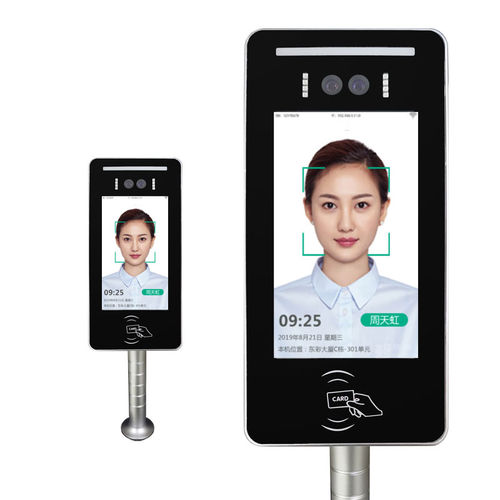

LCD panel PC WAR-070N-RM00

7"1024 x 600ARM® Cortex™ A7 Quad Core

High-end applications for image acquisition, face detection, and living body detection such as Xueliang Project, smart transportation, public security management, access control management, etc. Basic parameters CPU：Dual Cortex-A72 large core + Quad Cortex-A53 small core, frequency 1.8GHz GPU: Quad-core ARM Mali-T860 Memory：2GB DDR4 (4G as option) EMMC：8GB EMMC (16G as option) 2 million high-definition binocular camera, alive detection Display screen Size：7 inch Resolution：600×1024 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hours Hardware interface 1 channel RS-485 interface. 1 channel USB Device interface，support ADB connect to PC to exchange date and debug application . 1 channel USB Host 2.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 1000M Ethernet interface. 1 channel Wiegand interface .( Customization) . Support IC/ID card reader（Optional）. 1 channel DC 5.5-2.1 (DC 12V ) power iuput interface. OS Android 7.1 Defend degree (front panel) IP54 Size power：DC 12V/2A working temperature：0~50℃ storage temperature：-20~80℃ working humidity：10～90%RH Working environment shell structure：Metal panel size：261x126 x31.8（mm）(Excluding mounting handle) Application area High-end applications for image acquisition, face detection, and living body detection such as Xueliang Project, smart transportation, public security management, access control management, etc.
