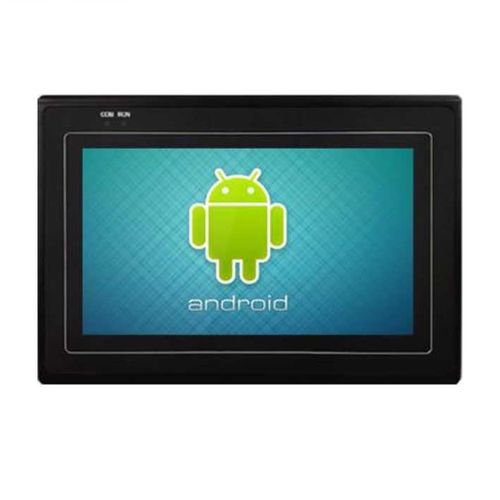

LCD panel PC WAR-070C-FP10

7"1024 x 600ARM® Cortex™ A7 Quad Core

industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment. Basic parameters CPU： Quad-core Cortex-A7 architecture，frequency 1.2GHz Memory：1GB DDR3 Flash：8GB NandFlash Display screen Size：7 inch Resolution：1024×600 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hours Touch screen Capacitance/Resistance touch screen Hardware interface 4 channel 3-wire RS-232 serial port（COM1,COM2,COM5,COM6） 2 channel RS-485（COM3、COM4） 1 channel CAN bus.（optional） 1 channel USB device interface, support ADB connect to PC to exchange data and debug application. 2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 1000M Ethernet interface. 1 channel SD/MMC slot,support SD/MMC card . 1 channel 3.5mm earphone output interface. 1 channel WIFI module .（optional）. Built-in WIFI, Bluetooth module （optional）. Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication. OS Android 7.1 Defend degree IP65 (front panel) Working environment power：DC 12V-24V （24V as recommendation) working Temperature：-10~55℃ storage temperature：-20~85℃ working humidity：10～90%RH Size shell structure：plastic panel size：206.00×142.00 （mm） trepanning size：195.6×131.6 （mm）
