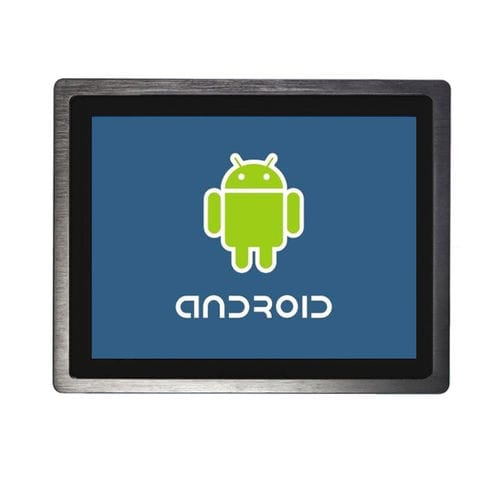

LCD panel PC WAR-150C-SM10

15"1024 x 768Quad Core Cortex A9

Product model：WAR-150C-SM10/WAR-150R-SM10 size：15 inch resolution：1024×768 CPU: Cortex -A9 architecture，frequency 1.4GHZ Memory: 1GB DDR3 Flash：8GB NandFlash Basic parameters CPU：Quad-core Cortex®-A9 ，frequency 1.4GHz Memory：1GB DDR3 Flash：8GB NandFlash Display screen Size：15 inch Resolution：1024×768 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hours Touch screen Capacitance/Resistance touch screen Hardware interface 2 channel DB9 interface（COM1,COM2）. 2 channel 3-wire RS-232 serial port（COM3, COM4）. 2 channel RS-485 interface（COM1、COM2 ), multiplex as COM1、COM2 of RS-232.（Signal isolated as optional） 1 channel CAN bus.（optional） 1 channel USB Device interface，support ADB connect to PC to exchange data and debug application. 2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot. 1 channel external Speaker interface. 1 channel external antenna. 2 channel DC12V~24V，industrial power solution，higher reliability. Built-in WIFI, Bluetooth module (optional ). OS Android 4.4.2 Defend degree IP65 (front panel) Working Environment power：12V-24V DC/3A working Temperature：-10~60℃ storage temperature: -20~80℃ working humidity：10～90%RH Size shell structure：metal Panel size：378.2x302.6x50 （mm） Trepanning size：359x283.5 （mm）
