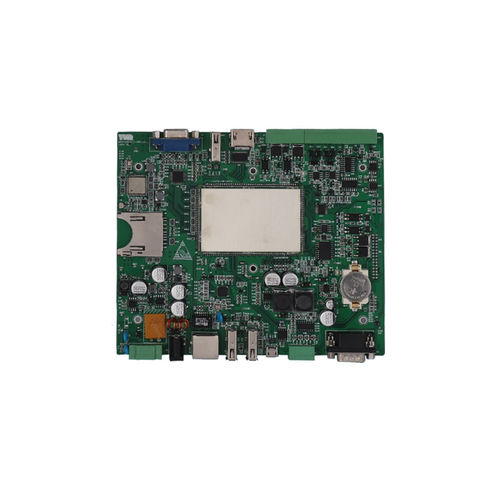

Android computer-on-module WAR-VGA-SN10

Quad Core Cortex A9HDMIVGA

Product model：WAR-VGA-SN10 size：7 inch CPU: Cortex-A9 architecture, frequency 1.4GHZ Memory: 1GB DDR3 EMMC：8GB Basic parameters CPU：Quad-core Cortex®-A9 ，frequency 1.4GHz Memory：1GB DDR3 Flash：8GB NandFlash Hardware interface 1 channel DB9 3-wire RS-232 interface（COM1）. 2 channel 3-wire RS-232 serial port（COM3，COM4）. 2 channel RS-485 interface（COM1、COM2）,and COM1 is a multiplexing as COM1 of DB9. 1 channel CAN bus interface（optional）. 1 channel USB Device interface，support ADB connect to PC to exchange date and debug application . 3 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc. 4 channel IO interface (2 channel IO interface as standard , and other 2 channel IO interface are multiplexing as CAN / COM3 . Multiplexing premise: The client shall specify in advance ,after specified cannot be changed .) 1 channel 100M Ethernet interface. 1 channel SD/MMC slot. 1 channel external speaker interface. 1 channel WIFI antenna interface. 1 channel HDMI interface . 1 channel VGA interface . 2 channel DC 12V~24V ,industrial power solution，higher flexibility. Built-in WIFI ,Bluetooth module (optional) . OS Android 4.4.2 Working environment power：12V-24V DC/2A working temperature：-10~55℃ storage temperature：-20~80℃ working humidity：10～90%RH Size structure：single board size：171.5x150.5（mm）
