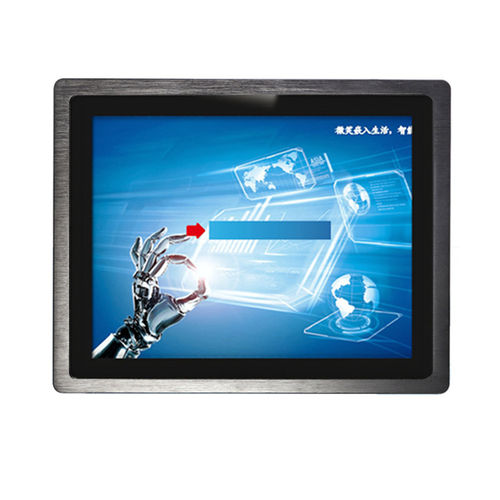

LCD panel PC WLT-150R-AM20

15"1024 x 768ARM Cortex-A8

Basic parameters CPU: Cortex -A8 architecture，frequency 1.0GHZ Memory: 512MB DDR3 Flash：256MB NandFlash Display screen Size：15 inch Resolution：1024×768 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hour Touch screen 5-wire resistance touch screen（driver inside） Hardware interface 2 channel DB9 interface（COM1,COM2） 1 channel 3-wire RS-232 serial port（COM3） 2 channel RS-485 interface（COM1、COM2 ), multiplex as COM1、COM2 of RS-232.（Signal isolated as optional） 1 channel CAN bus.（optional） 1 channel USB Device interface，support ActiveSync connect to PC to exchange data and debug application. 2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot. 1 channel external Speaker interface. 1 channel external antenna. 2 channel DC12V~24V，industrial power solution，higher reliability. Built-in WIFI, Bluetooth (optional ) OS Windows CE 6.0 Defend degree IP65 (front panel) Working Environment power：12V-24V DC/3A working Temperature：-10~60℃ storage temperature: -20~80℃ working humidity：10～90%RH
