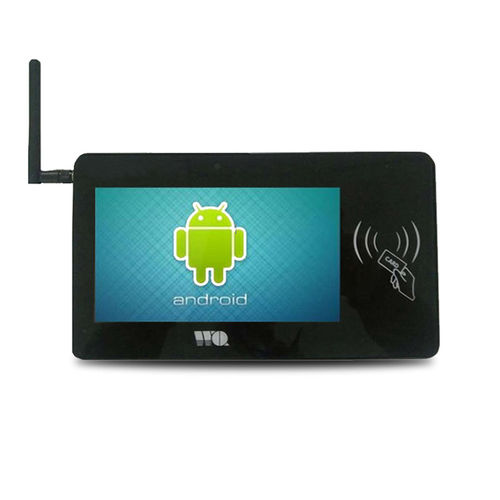

LCD panel PC WAR-070C-SSR0

7"1024 x 600Quad Core Cortex A9

Basic parameters CPU：Quad-core Cortex®-A9 architecture，frequency 1.4GHz Memory：1GB DDR3 Flash：8GB NandFlash Display screen Size：7 inch Resolution：1024×600 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hours Touch screen Capacitance/Resistance touch screen Hardware interface 1 channel DB9 interface（COM1）. 1 channel 3-wire RS-232 serial port（COM2）. 1 channel RS-485 interface（COM3）. 4 channel IO input interface,3 channel IO output interface. 1 channel USB Device interface，support ADB connect to PC to exchange date and debug application . 2 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel external antenna interface. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot,support TF card. 1 channel audio output interface . 2 channel built-in speaker interface. 1 channel 4G SIM card interface . 2 channel DC 12V~24V ,industrial power solution，higher reliability. Built-in 4G ,WIFI ,Bluetooth module (optional) . OS Android 4.4.2 Defend degree IP65 (front panel) Working environment power：DC 12V-24V （24V as recommendation) working temperature：-10~60℃ storage temperature：-20~85℃ working humidity：10～90%RH Size shell structure：plastic panel size：206.00×142.00 （mm） trepanning size：195.6×131.6 （mm）
