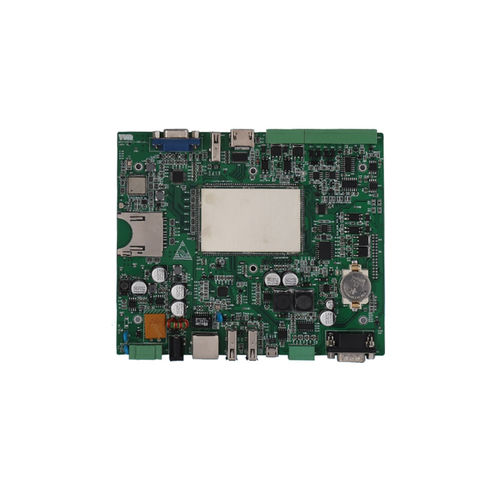

Embedded motherboard WAR-VGA-SN10

ARM Cortex-A9DDR3 SDRAMindustrial

Android industrial panel computer VGA Motherboard Basic parameters CPU：Quad-core Cortex®-A9 ，frequency 1.4GHz Memory：1GB DDR3 Flash：8GB NandFlash Hardware interface 1 channel DB9 3-wire RS-232 interface（COM1）. 2 channel 3-wire RS-232 serial port（COM3，COM4）. 2 channel RS-485 interface（COM1、COM2）,and COM1 is a multiplexing as COM1 of DB9. 1 channel CAN bus interface（optional）. 1 channel USB Device interface，support ADB connect to PC to exchange date and debug application . 3 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc. 4 channel IO interface (2 channel IO interface as standard , and other 2 channel IO interface are multiplexing as CAN / COM3 . Multiplexing premise: The client shall specify in advance ,after specified cannot be changed .) 1 channel 100M Ethernet interface. 1 channel SD/MMC slot. 1 channel external speaker interface. 1 channel WIFI antenna interface. 1 channel HDMI interface . 1 channel VGA interface . 2 channel DC 12V~24V ,industrial power solution，higher flexibility. Built-in WIFI ,Bluetooth module (optional) . OS Android 4.4.2 Working environment power：12V-24V DC/2A working temperature：-10~55℃ storage temperature：-20~80℃ working humidity：10～90%RH Size structure：single board size：171.5x150.5（mm） Application area industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment. Software support Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc .
