LCD panel PC WAR-070 series

resistive touch screencapacitive touch screenLED backlight

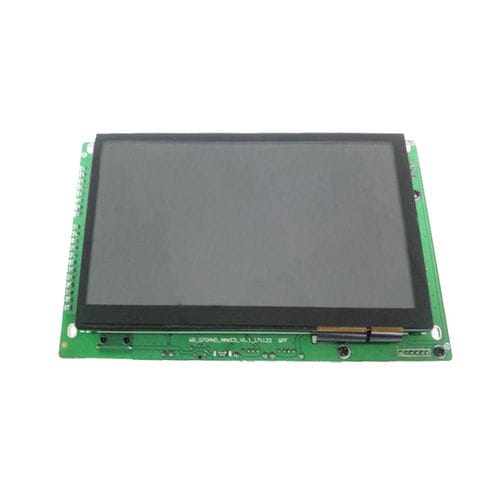

7 inch Android Naked LCD module industrial computer Product model WAR-070C-SN10/WAR-070R-SN10 Basic parameters CPU：Quad-core Cortex®-A9 architecture，frequency 1.4GHz Memory：1GB DDR3 Flash：8GB NandFlash Display screen Size：7 inch Resolution：1024×600 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hours Touch screen Capacitance /Resistance touch screen Hardware interface 4 channel 3-wire RS-232 serial port（COM1,COM2,COM3,COM4） 2 channel RS-485 interface（COM1、COM2）multiplex as RS-232 (COM1、COM2) . 1 channel isolated CAN bus interface. (optional) 1 channel USB Device interface，support ADB connect to PC to exchange data and debug application. 2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot, support mini SD /MMC card. 1 channel 3.5mm earphone output interface. 1 channel speaker interface (built-in power amplifier 2w ) 1 channel DC12V~24V，industrial power solution，higher reliability. 1 channel 4G module . （optional） 1 channel WIFI interface .（optional） OS Android 4.4.2 Working environment power：DC 12V-24V （24V as recommendation) working temperature：-10~60℃ storage temperature：-20~80℃ working humidity：10～90%RH Size No shell power：DC 12V-24V （24V as recommendation) Size：188×117×41 （mm） Application area industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment.
