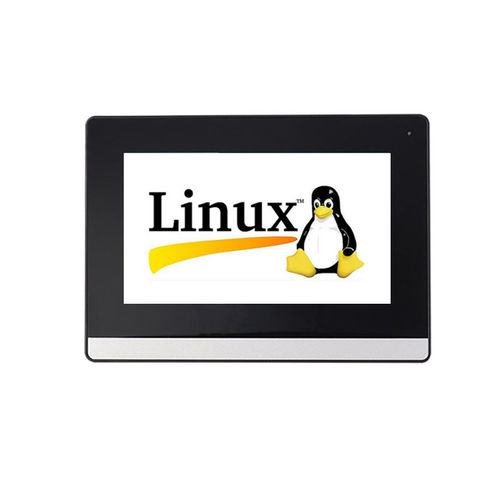

LCD panel PC WAR-070C-SS10

resistive touch screencapacitive touch screenLED backlight

7 Inch Linux industrial panel computer Product model WLX-070C-SS10 Basic parameters CPU：Quad-core Cortex®-A9 architecture，frequency 1.4GHz Memory：1GB DDR3 Flash：8GB NandFlash Display screen Size：7 inch Resolution：1024×600 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hours Touch screen Capacitance/Resistance touch screen Hardware interface 1 channel DB9 interface（COM1）. 1 channel 3-wire RS-232 serial port（COM2）. 1 channel RS-485 interface（COM3）. 1 channel isolated CAN bus interface（optional）. 1 channel external antenna interface. 1 channel USB Device interface，support ADB connect to PC to exchange date and debug application . 2 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot,support TF card. 1 channel audio output interface . 1 channel speaker interface. 1 channel 4G communication card interface . 1 channel DC 12V~24V . Built-in 4G ,WIFI ,Bluetooth (optional) . OS Linux Defend degree IP65 (front panel) Working environment power：DC 12V-24V （24V as recommendation) working temperature：-10~60℃ storage temperature：-20~85℃ working humidity：10～90%RH Size shell structure：plastic panel size：201.5×143.5×34.5 （mm） trepanning size：191.5×133.5 （mm） Application area industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment. Software support QT Creator（QT C++）development, easy to use other software flexibly.
