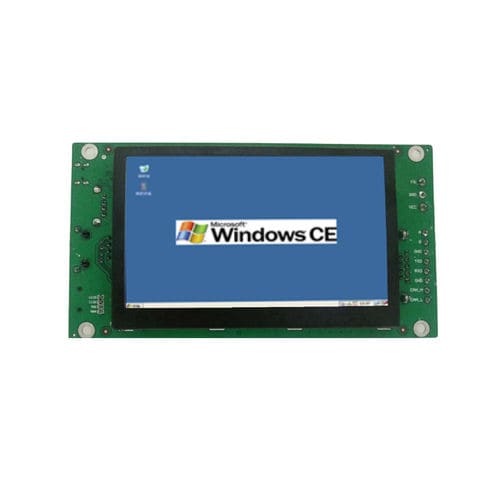

LCD panel PC WLX-043R-NN00

resistive touch screenLED backlight4.3"

4.3 inch WinCE Naked LCD module industrial panel computer Product model WLT-043R-NN00 Basic parameters CPU：ARM9 architecture，frequency 300MHZ Memory: 64MB DDR2 Flash：256MB NandFlash Display screen Size：4.3 inch Resolution：480×272 Wide-temperature type，64K colors or 260K colors LED backlight：lifetime > 25000 hours Touch screen 4-wire resistance touch screen（driver inside） Hardware interface 1 channel DB9 interface（COM1）. 1 channel 3-wire RS-232 serial port（COM2） 2 channel RS-485 interface（COM3、COM7），COM3 is a multiplexing of CAN , COM3 as standard . 1 channel USB device interface，support ActiveSync connect to PC to exchange data and debug application. 1 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel TF slot, support SD/TF card. 1 channel CAN interface（driver inside）（optional） 1 channel DC12V~24V, industrial power solution，higher reliability. OS Windows CE 6.0 Working Environment Power： DC 12V~24V，600mA Working temperature：-10~60℃ Storage temperature：-20~80℃ working humidity：10～90%RH Size No shell power：12~24V Size ：143.7x77.5x25.3 （mm） trepanning size：108x69.5 (mm) Application area industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. Software support Flash FAT file system protection function. IDE: Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++, Labview development. Easy change the user-defined splash screen. Support display screen rotation (degree: 0/90/180/270)
