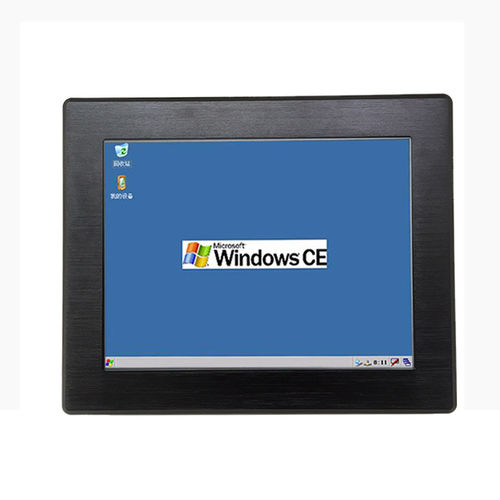

LCD panel PC WLX-102R-AM20

resistive touch screenLED backlight12"

12 Inch WinCE industrial panel computer Product model WLT-120R-AM20 Basic parameters CPU: Cortex -A8 architecture，frequency 1.0GHZ Memory: 512MB DDR3 Flash：256MB NandFlash Display screen Size：12 inch Resolution：800×600 Wide-temperature type，64K colors or 260K colors LED backlight：lifetime > 25000 hours Touch screen 4-wire resistance touch screen（driver inside） Hardware interface 2 channel DB9 interface (COM1,COM2) 3 channel 3-wire RS-232 serial port (COM3、COM4、COM5) 2 channel RS-485 interface（COM1、COM2）multiplex as DB9 (COM1、COM2).（Signal isolated as optional） 1 channel CAN bus, multiplex as COM5，COM5 as standard .（optional）， 1 channel USB device interface，support ActiveSync connect to PC to exchange data and debug application 2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot. 1 channel External Speaker interface. 2 channel DC12V~24V，industrial power solution，higher reliability. OS Windows CE 6.0 Defend degree IP65 (front panel) Working Environment power：12V-24V DC/3A working Temperature：-10~60℃ storage temperature: -20~80℃ working humidity：10～90%RH Size shell structure：metal panel size：319x259（mm） trepanning size：305.2x245.8 （mm） Application area industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment. Software support Flash power-down protection function. IDE: Visual Studio 2005/2008.net(.net 2.0 Compact)、Labview development.
