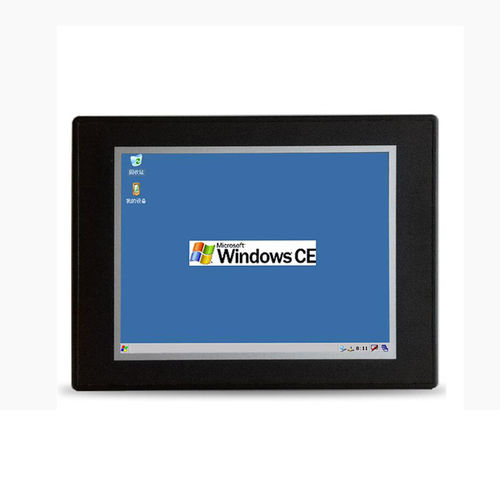

LCD panel PC WLT-104R

resistive touch screenLED backlight10.4"

10.4 Inch WinCE Industrial Panel Computer Product model WLT-104R Basic parameters High Configuration】: CPU：SAMSUNG S5PV210，Cortex A8 Architecture，frequency 1.0GHZ Memory：512MB DDRⅡ Flash：256MB NandFlash Low Configuration】： CPU：SAMSUNG S3C2416，ARM9 Architecture，frequency 400MHZ Memory：64MB DDRⅡ Flash：128MB NandFlash Display screen Size：10.4 inch Resolution：800×600 Wide-temperature type, 64K colors or 260K colors LED backlight：lifetime>25000 hours Touch screen 4-wire resistance touch screen（driver inside） Hardware interface 4 channel isolated 3-wire RS-232 serial port（COM1,COM2,COM3，COM4），2 channel（COM1、COM2）multiplex as RS-485 bus. 1 channel CAN bus.（optional）（driver inside） 1 channel USB Device interface，support ActiveSync connect to PC to exchange data and debug application. 1 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel WIFI module inside.（optional） 1 channel SD/MMC slot. 1 channel 3.5mm audio output interface. 1 channel DC12V~24V，industrial power solution，higher reliability. OS High Configuration】：Windows CE 6.0 R3 Low Configuration】：Windows CE .NET 5.0 Defend degree IP65 (front panel) Working Environment power：12V DC（12V as recommendation，the range is 12V~24V），600mA working Temperature：-10~60°C Working humidity：10～90%RH Size Structure：plastic Panel size：287.30×218.50（mm） Trepanning size：267.40×198.60 （mm）
