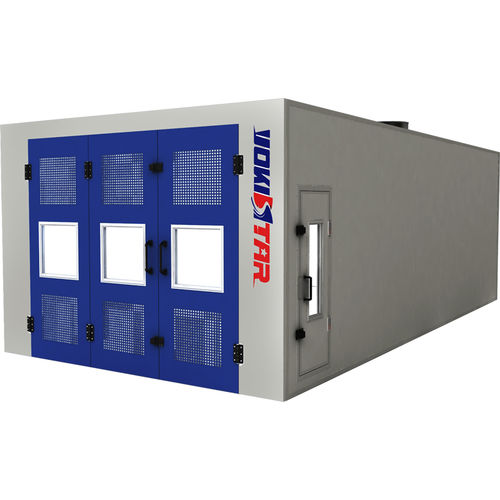

Enclosed paint booth YS-PB series

for the wood industry

Yokistar Furniture Paint Booth is designed and manufactured specially for wood finishing, heavy machinery finishing, truck finishing and such kinds of industrial equipment painting without heating. Whether the paint you are spraying is solvent base paint or water base paint, Yokistar will provide you the right solution. To save more energy, running cost, and achieve more environmental air qua lity during the painting, Yokistar promotes the industrial painting booth as one more choice for our customer. The special requirements also can be customizable designed by our rich experience engineer. YS-PB1 furniture paint booth Cross draft (air intaked from main door, air exhaust by the rear wall) Intake Air Without motor and fan. The fresh air comes into the room from the outside naturally Exhaust Air Motor type: inside of the fan; motor qty.:1pc; single motor power:4KW; total power:4KW. Fan type: axial fan; model:T40-7C; total air capacity: 12000m3/h. Filter Filtering frames are installed on the main door Pre-filter, G3 Grade(EN779),type is C16-300 Control System Power Switch, Fan Switch,Light Switch. YS-PB2 furniture paint booth Side down draft;Air intaked from the roof;Air exhausted from the two side walls. Intake Air Without motor and fan. The fresh air comes into the room from the roof naturally. Exhaust Air 2 sets, following specification is only for 1 set.Motor type: inside of the fan; motor qty.:2pcs; single motor power:2.2KW; total power:4.4KW; Fan type: axial fan; model:T40-6C; total air capacity: 26,000m3/h. 8M straight duct, 2pcs 90°elbow duct, 2pcs 30° elbow duct.
