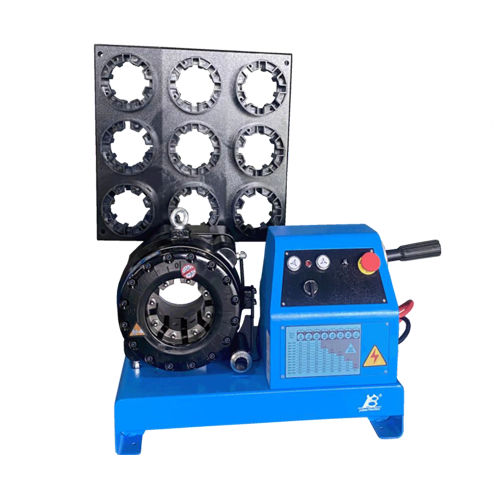

Hose crimping machine YB-P20CS
automaticfoot-operatedcompact

Hose crimping machine - YB-P20CS - Guangzhou YuBen Hydraulic Technology Co., Ltd. - automatic / foot-operated / compact

Add to favorites

Compare this product

Characteristics

Product handled

for hoses

Operational mode

automatic

Drive type

foot-operated

Other characteristics

compact

Crimping force

1,370 kN

Crimping capacity

Min.: 10 mm
(0.4 in)

Max.: 61 mm
(2.4 in)

Power

1.6 kW
(2.18 hp)

Voltage

24 V

Description

Yuben P20CS hose-crimping machine has been designed to crimp up to 1 1/2” diameter 2-spiral hoses or 1 1/4" 4 SH. And for car-service use. It is fast and easy to use. CS machines are battery powered with 12V or 24V. Cycle time 10 mm (s) - 7.2 Hose size ID (inches) - 1 1/2(2SN) / 1 1/4(4SP) Dies set series - P20 Max. opening (mm) - +25 Max.opening without dies (mm) - 109 Master die D / L (mm) - 84/80 Master die D / L (inches) - 3.31/3.15 Motor (kW) 12V/24V: - 1.6/2.25 Motor (HP) 12V/24V: - 2.1/3.05 Oil tank volume (L) - 4 Crimping /hour - 200 Machine (mm) - 600X480X480 Machine (inch) - 23.6X18.9X18.9 Package (mm) - 830X630X600 Package (inch) - 32.7X24.8X23.6 ※QuickChange-tool ※Die wall racks
