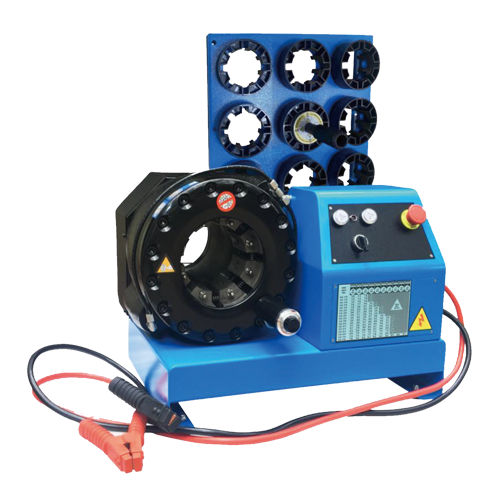

Hose crimping machine YB-P32CSsemi-automaticfoot-operatedcompact
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- semi-automatic
- Drive type
- foot-operated
- Other characteristics
- compact
- Crimping force
2,000 kN
- Crimping capacity
Min.: 10 mm
(0.4 in)Max.: 87 mm
(3.4 in)- Power
1.6 kW
(2.18 hp)- Voltage
Min.: 12 V
Max.: 24 V
Description
Yuben P32CS hose-crimping machine has been designed to crimp up to 2” diameter4-spiral hoses. It is fast and easy to use.And for car-service use. It is fast and easy to use. CS machines are battery powered with 12V or 24V.
Cycle time 10 mm (s) - 7.5
Hose size ID (inches) - 2" (4SH) / 1 1/2"(6SH)
Dies set series - P32
Max. opening (mm) - +33
Max.opening without dies (mm) - 132
Master die D / L (mm) - 99/80
Master die D / L (inches) - 3.90/3.15
Motor (kW) 12V/24V - 1.6/2.25
Motor (HP) 12V/24V - 2.1/3.05
Oil tank volume (L) - 4
Crimping /hour - 100
Machine (mm) - 600X480X520
Machine (inch) - 23.6X18.9X20.5
Package (mm) - 830X630X600
Package (inch) - 32.7X24.8X23.6
※QuickChange-tool
※Die wall racks
