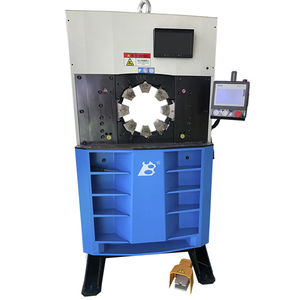

Hose crimping machine YB120Lautomaticfoot-operatedhigh-capacity
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- automatic
- Drive type
- foot-operated
- Other characteristics
- high-capacity
- Crimping force
2,450 kN
- Crimping capacity
118 mm
(4.6 in)- Power
4 kW
(5.44 hp)- Voltage
Max.: 440 V
Min.: 200 V
200 V, 220 V, 380 V, 400 V, 440 V
- Weight
790 kg
(1,741.65 lb)
Description
Suitable for small batch production, high efficiency, high stability. Up to 2 inch (R13) or 3 inch 2 sp hose.Save operator's strength by compact ergonomic design make .
Cycle time 10 mm (s) - 1.8
Hose size ID (inches) - 2" (R13)
Dies set series - P20 & YB120L
Max. opening (mm) - +52
Max.opening without dies (mm) - 170
Master die D / L (mm) - 118/97
Master die D / L (inches) - 4.65/3.82
Motor Power (kW/HP) - 4/5.44
Oil tank volume (L) - 70
Motor Voltage (V)： Tri - 200/220/380/400/440
※QuickChange-tool
※Mirror
※Electric backstop device
※Die racks
※CNC
VIDEO
Catalogs
YB120L
1 Pages

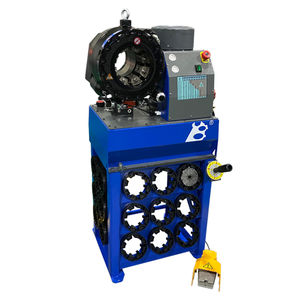

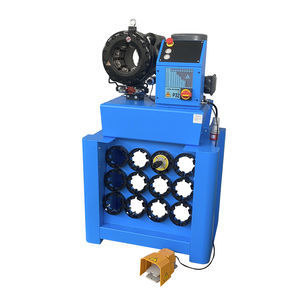

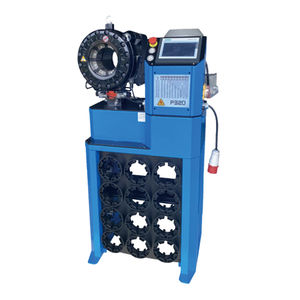

Other Guangzhou YuBen Hydraulic Technology Co., Ltd. products
