- Guangzhou YuBen Hydraulic Technology Co., Ltd.
Hydraulic hose YB599rubbersynthetic rubberNBR
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- rubber, synthetic rubber, NBR, steel
- Other characteristics
- standard, spiral
- Inner diameter
Max.: 51.8 mm
(2.039 in)Min.: 6 mm
(0.236 in)- Outer diameter
Max.: 71.5 mm
(2.815 in)Min.: 17 mm
(0.669 in)- Pressure
Max.: 70 MPa
Min.: 35 MPa
- Temperature
Max.: 121 °C
(249.8 °F)Min.: -40 °C
(-40 °F)
Description

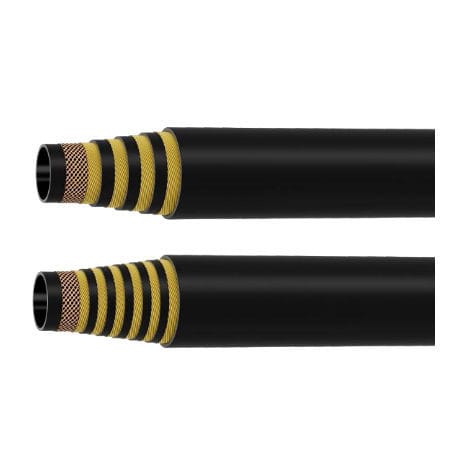

ARTERY° WIRE SPIRAL HYDRAULIC RUBBER HOSE
Inner Tube: NBR synthetic rubber, which is suitable for biodegradable hydraulic oil delivery
Reinforcement: 4-layer or 6-layer spiraled high tensile steel wire. Tested with 800,000 impulse cycles without leakage
Outer Layer: black narrow cloth texture hose cover with non-cover removal (with stand all weather exposure for over 3 years)
Produce Standard: comply with ISO18752-CC standard
