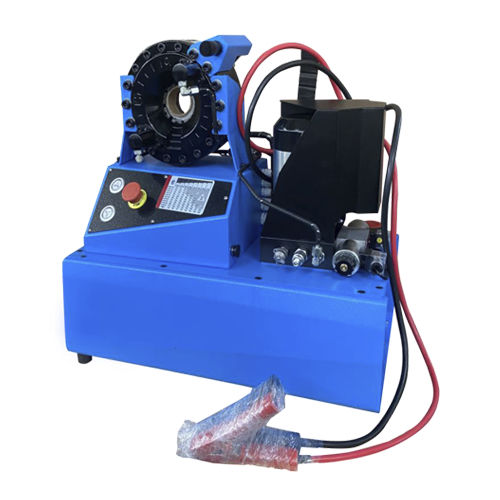

Hose crimping machine YB-P18CSsemi-automatichydraulic
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- semi-automatic
- Drive type
- hydraulic
- Crimping force
800 kN
- Crimping capacity
Min.: 10 mm
(0.4 in)Max.: 54 mm
(2.1 in)- Power
2 kW
(2.72 hp)- Voltage
12 V, 24 V
Description
P18CS hose-crimping machine has been designed to crimp up to 3/4”diameter 4-spiral hoses. It is small hydraulic crimping machine for car- service use. It is fast and easy to use. CS machines are battery powered with 12V or 24V.
Cycle time 10 mm (s) - ____
Hose size ID (inches) - 3/4(4sp) / 1 (2sp)
Dies set series - P18
Max. opening (mm) - +20
Max.opening without dies (mm) - 68
Master die D / L (mm) - 48/64
Master die D / L (inches) - 1.89/2.52
Oil tank volume (L) - 26
