Hydraulic hose YB794
thermoplasticaramidtransfer

Hydraulic hose - YB794 - Guangzhou YuBen Hydraulic Technology Co., Ltd. - thermoplastic / aramid / transfer
Hydraulic hose - YB794 - Guangzhou YuBen Hydraulic Technology Co., Ltd. - thermoplastic / aramid / transfer
Add to favorites
Compare this product


Characteristics

Use
hydraulic
Material
thermoplastic, aramid
Applications
transfer, for petrochemical applications, agricultural
Inner diameter

Max.: 25.4 mm
(1 in)

Min.: 4.8 mm
(0.189 in)

Outer diameter

Max.: 34 mm
(1.339 in)

Min.: 10.3 mm
(0.406 in)

Pressure

Max.: 37.5 MPa

Min.: 15 MPa

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

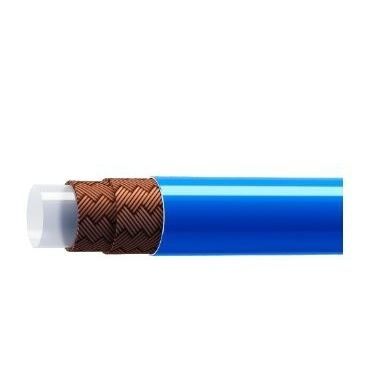

ARAMID FIBER BRAID HIGH PRESSURE THERMOPLASTIC HOSE Hose Construction Inner Tube: nylon Reinforcement: one or two aramid fiber braid Outer Layer: black or other color polyurethane Suitable to transfer petroleum and water based hydraulic oil, which could be used as lubrication lines and blowout preventer lines, etc. widely apply to hydraulic lifts, agricultural machines and construction machines.
