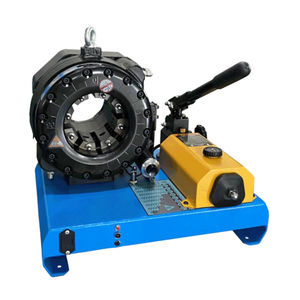

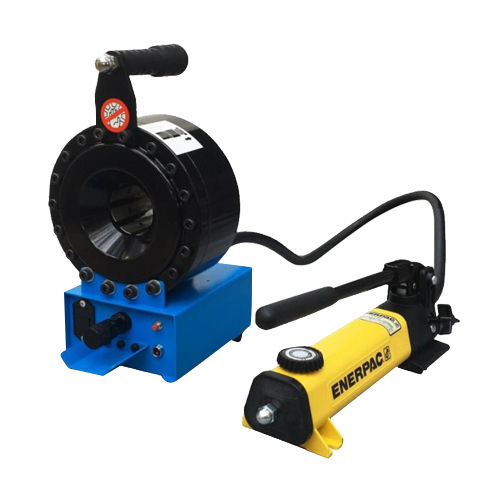

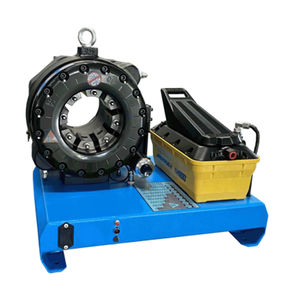

Hydraulic hose crimping machine YB-P16HPZmanualhydrauliccompact
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- manual
- Drive type
- hydraulic
- Other characteristics
- compact, portable
- Crimping force
955 kN
- Crimping capacity
Min.: 10 mm
(0.4 in)Max.: 45 mm
(1.8 in)- Weight
24 kg
(52.91 lb)
Description
P16HPZ is hand pump operated hydraulic crimping machine for repair workshops and field use. Easy to use, light and compact in size, allowing to be carried to any location.
Cycle time 10 mm (s) - ____
Hose size ID (inches) - 1
Dies set series - P16
Max. opening (mm) - +20
Max.opening without dies (mm) - 59
Master die D / L (mm) - 39/64
Master die D / L (inches) - 1.54/2.52
P16HPZ (mm) - 150X250X380
P16HPZ (inch) - 5.9X9.8X15
Package (mm) - 475X430X410
Package (inch) - 18.7X16.9X16.1
