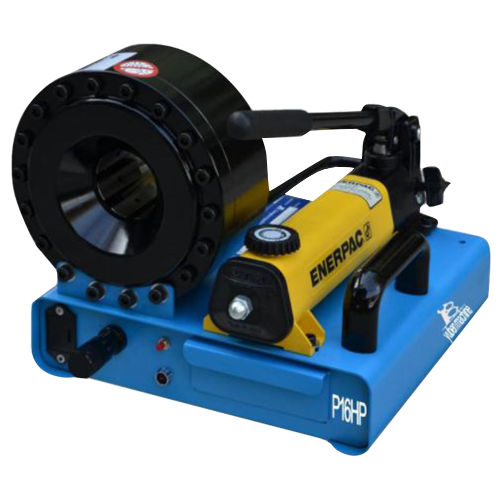

Hose crimping machine YB-P16HP(ERPAC)hydraulic hosemanualhydraulic
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses, hydraulic hose
- Operational mode
- manual
- Drive type
- hydraulic
- Other characteristics
- compact, portable
- Crimping force
955 kN
- Crimping capacity
Max.: 45 mm
(1.8 in)Min.: 10 mm
(0.4 in)- Weight
24 kg
(52.91 lb)
Description

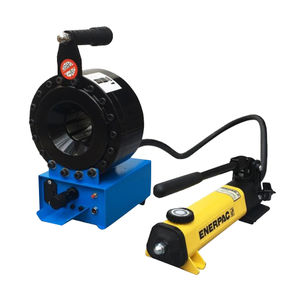

P16HP is hand pump operated hydraulic crimping machine for repair workshops and field use. Easy to use, light and compact in size, allowing to be carried to any location.
Cycle time 10 mm (s) - ____
Hose size ID (inches) - 1
Dies set series - P16
Max. opening (mm) - +20
Max.opening without dies (mm) - 59
Master die D / L (mm) - 39/64
Master die D / L (inches) - 1.54/2.52
P16HP (mm) - 330X450X291
P16HP (inch) - 13X17.7X11.5
P16HPZ (mm) - 150X250X380
P16HPZ (inch) - 5.9X9.8X15
Package (mm) - 475X430X410
Package (inch) - 18.7X16.9X16.1
