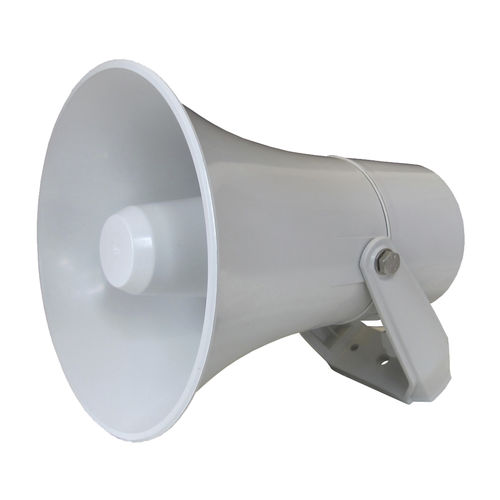

Portable loudspeaker P-HP-15

with compression chamber

The P-HP-15(T) Speaker is a high quality 15W, IP67, plastic horn loudspeaker. It can be installed in any harsh environment, both indoor and outdoor. Frequent range and high sensitivity, combined with high corrosion resistance make this speaker stand out in terms of quality and performance. Product Features ASA / RAL 7035 M-20 Glands Brackets and all outside nuts are stainless steel 70/100 Volt combined transformer: Primary connections: White : Green 70 Volt line White : Red 100 Volt line Secondary nominal tappings: C : 4 15.0 W C : 3 7.5 W C : 2 4.0 W C : 1 2.0 W 8 ohm version available IP-rating 67 Rated / max. power 15 W / 20 W SPL 1W/1m 108 dB SPL rated power 118 dB Effective freq. range 330 8000 Hz Dispersion (-6dB) 1kHz / 4kHz 130° / 35° Operating Temp. 194°F / -58°F (90°C / -50°C) Applications Chemical Plants Refineries Aerospace Sites Bulk Loading Stations Mines Drilling Rigs Munitions Storage Areas Offshore Platforms Nuclear Facilities Power Generation Facilities and more ...
