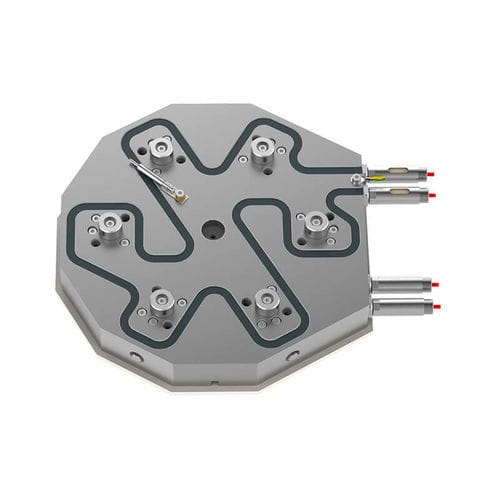

Hot runner manifold SCP

Different manifold versions can be selected, depending on the desired application – from partially or full balanced to customer-specific special solutions. Flexible positioning of hot runner nozzles with a manifold make individualised mould design possible. The advantages Homogeneous temperature distribution Variable nozzle positions Power connections with external damage protection Simple and fast cleaning Homogeneous temperature management thanks to pressed-in heaters All melt-conducting components are heated externally, which ensures optimum plastic flow with the smallest possible pressure loss. Pressed-in heaters on both sides guarantee optimum heat transfer to the manifold block. This results in homogeneous temperature distribution. Protected power connections – highly maintenance friendly Steel and ceramic sleeves protect the power plug connections from damage. Mechanical cleaning of the manifold runners is easy and fast. Cleaning in the fluid bed bath or oven is also possible. Rapid systems and BlueFlow® nozzles are stored in the CADHOC® System Designer library and are quickly accessible. They enable you as a registered user to configure your rapid system in a very short period of time. You can immediately download all relevant 3D data – including negative volume and price information – quickly, easily and securely. Manifold height SCP: 36 mm SDP: 46 mm SEP: 56 mm Manifold length øTK + 2 × DS Operating voltage 230 VAC Volt Alternating Current - Wechselstrom
