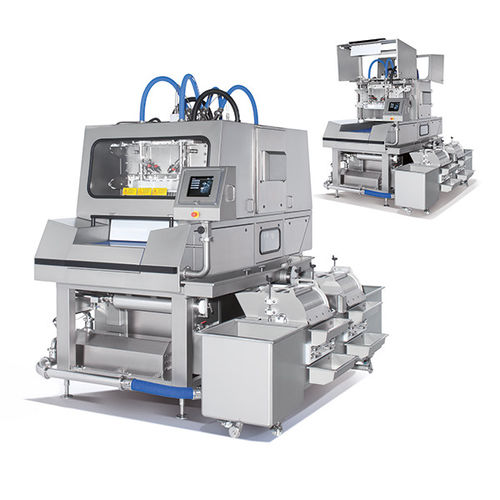

Fish brine injector machine PI TANDEM, PI DUO series

for meatfor cheese

Tandem-type injector with a drive for both needle heads and DUO injector with 2 independently driven needle heads Easy operation and ergonomic industrial design Direct drive via servo technology Precision needle heads with quick change (release) needle-bridge-system Complete separation of pump cycle from all electro mechanic components Product related pump selection Pre-filter system electronically supervised Automatic rotary filter units GRF 700 Process parameters infinitely variable Special conveyor from polyethylene, easy to remove for sanitation MC2R control with touch-screen 100 memory spaces for recipe storage Infinitely variable stroke height selection from 40-220 mm Number of strokes up to 50 st/min Automatic stand by mode for needle head and brine circulation Highest injection precision supported by position controlled brine valve Injection pattern variable via automatic belt positioning Automatic sanitation program USB/ Ethernet and CAN-Bus standard Individual pneumatic tension control New New drive concept Günther Reverse II Optional patented individual needle detection system and flow monitoring and detection of individual damaged needles Optional dynamic stroke mode All process data and functions are handled via touch screen operator panel.
