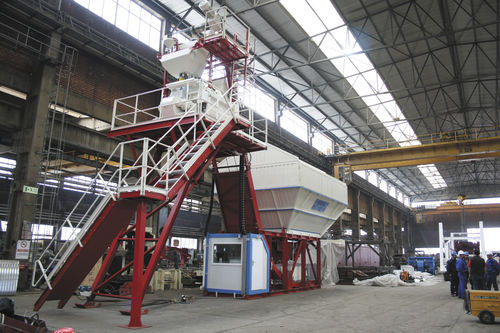

Stationary concrete batching plant GSP-35compact
Add to favorites
Compare this product
Characteristics
- Mobility
- stationary
- Other characteristics
- compact
- Capacity
35 m³/h
(1,236.01 ft³/h)
Description
SPECIFICATIONSUNITPLANT TYPE
Plant Capacity
Compacted Concretem3 / hr35
Mixer Specifications
Mixer Capacitym30,5
Dry CapacityLt.750
Compacted ConcreteLt.500
Motor PowerkW18,5
Batchers
Aggregate Weighing Capacitykg2.000
Cement Weighing Capacitykg350
Water Weighing CapacityLt250
Addivites Weighing Capacitykg25
Aggregate Weighing Conveyor
Widthmm600
Lengthmm13.000
Motor PowerkW5,5
Mixer FeedingSkip Hoist
Widthmm-
Lengthmm-
Motor PowerkW7,5
Aggregate Bunker
Aggregate Compartmentno3-4
Compartment Capacitym315-20
Totalm345-60
Cement Screw Conveyor
Diametermm193
Lengthmm10.000
Motor PowerkW9,2
Cement Silo
Capacityton50
Numberno1-2
Compressor
CapacityIt/min.1.360
Working Pressurebar6-8
Motor PowerkW5,5
