Manual lifting device ELC-720

portablehandling

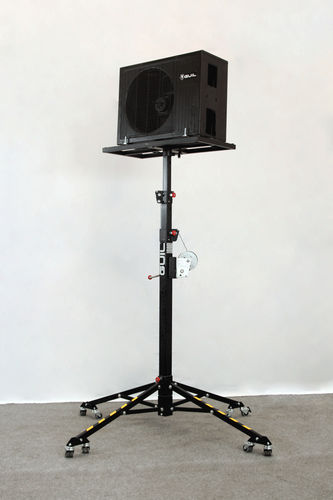

Material lifter ELC-720 Material lift to raise loads of up to 125 kg (275.58 lb) to 3.50 metres (11′ 5.80″). Its user friendly and compact design, with folding and adjustable base (umbrella style), make the ELC-720 Lift an ideal complement for any kind of lifting task that has to be done in a limited working area for both outdoor and indoor use. DESCRIPTION Material lift to raise loads of up to 125 kg (275.58 lb) to 3.50 metres (11′ 5.80″). Its user friendly and compact design, with folding and adjustable base (umbrella style), make the ELC-720 Lift an ideal complement for any kind of lifting task that has to be done in a limited working area for both outdoor and indoor use. Lifting Tower consisting of three telescopic sections made of steel finished in a textured, black powder coating (Epoxy) that has special anti-scratch properties. This feature, together with the fact that all its components are made with rustproof material, makes the lift suitable for use outdoors, guaranteeing maximum corrosion resistance. Note: For maximum stability, the last section is fitted with a reinforced ending. These sturdy sections are raised by means of a Ø 4 mm (0.16″) non-rotating steel wire rope with an independent galvanized steel core, Composition: 7×19+0, specially manufactured for lifting heavy loads (DIN 3060), which is guided by self-lubricating pulleys with bearings.All pulleys and the roller-cable guide have protective metal plates, which have two main functions: – To prevent damage during the lift handling. – To stop the wire from coming out of the pulleys.
